Hydraulic Watertight Door On Ships
A marine waterproof door is a specially designed door used in marine environments to prevent the ingress of water from one section of a ship or vessel to another.
The hydraulic mechanism of the waterproof door allows for smooth and reliable operation, ensuring easy access while maintaining a tight seal when closed. The waterproof construction and sealing systems prevent water from entering the vessel, reducing the risk of flooding and maintaining a safe environment for crew members and cargo.
Types Of Marine Hydraulic Waterproof Door
There are three kinds of hydraulic waterproof door, they are hydraulic sliding waterproof door, hydraulic hinged waterproof door, and hydraulic translational waterproof door.
Hydraulic Sliding Watertight Door
Through-hole Size(B*H) | Bulkhead Opening | B | H | T | Opening Direction | Power Supply |
500*1000 | 680*1180 | 680 | 1250 | 125 | Left opening(L) Right opening(R) | 440V-60Hz 3ø/DC24V 440V-50Hz 3ø/DC24V 380V-50Hz 3ø/DC24V |
600*1200 | 780*1380 | 780 | 1450 | 126 | ||
600*1400 | 780*1580 | 780 | 1650 | 125 | ||
650*1600 | 830*1780 | 830 | 1880 | 130 | ||
650*1700 | 830*1780 | 830 | 1980 | 130 | ||
700*1400 | 880*1580 | 880 | 1680 | 130 | ||
700*1600 | 880*1780 | 880 | 1880 | 130 | ||
750*1750 | 930*1930 | 930 | 2020 | 135 | ||
750*1850 | 930*2030 | 930 | 2120 | 135 | ||
800*1750 | 980*1930 | 980 | 2030 | 140 | ||
800*1900 | 980*2080 | 980 | 2130 | 140 | ||
800*2000 | 980*2180 | 980 | 2480 | 140 | ||
1000*1900 | 1180*2080 | 1180 | 2200 | 150 | ||
1000*2000 | 1280*2180 | 1280 | 2300 | 150 | ||
1200*2000 | 1380*2180 | 1380 | 2300 | 150 |
Hydraulic sliding watertight doors on ships offer two modes of control: manual hydraulic and electric hydraulic, providing flexibility for selection based on the ship and user requirements. These doors have obtained certifications from CCS, DNV, BV, ABS, GL, LR, RINA, NK, and other classification societies, ensuring compliance with SOLAS specifications.
For manual hydraulic control, the doors are operated using hand pumps arranged on both sides of the door and the upper deck. Electric hydraulic control is achieved through button boxes and control panels located on both sides of the door, with a “remote control closing” knob. Manual pump manipulation is also available on both sides of the door and the upper deck.
These doors have obtained certifications from CCS, DNV, BV, ABS, GL, LR, RINA, NK, and other classification societies, ensuring compliance with SOLAS specifications.
For manual hydraulic control, the doors are operated using hand pumps arranged on both sides of the door and the upper deck. Electric hydraulic control is achieved through button boxes and control panels located on both sides of the door, with a “remote control closing” knob. Manual pump manipulation is also available on both sides of the door and the upper deck.
In emergency situations, the doors can be operated at least three times using the stored energy, even at a 15-degree adverse tilt.
The electric hydraulic pump can be installed on the door or on the upper deck. Each door is equipped with 1 or 2 hydraulic cylinders. The electric hydraulic pump system can be centrally controlled (double pump double motor independent for multi-door setups) or individually controlled (1 pump group for each door).
The net opening size of the watertight doors on ships can be designed according to the provided schedule, and other dimensions or special requirements can be customized to meet user specifications.
Hydraulic Hinged Waterproof Door
Through-hole Size(b*h) | Blukhead Opening | B | H | T | Opening Direction | Power Supply |
2000*2200 | 2000*2200 | 2000 | 2000 | 240 | Up-Opening | 440V-60Hz 3ø/DV24V 400V-50Hz 3ø/DC24V 380V-50Hz 3ø/DC24V |
2000*2000 | 2000*2000 | 2000 | 2000 | 240 | ||
1800*2000 | 1800*2000 | 1800 | 2000 | 230 | ||
1800*1800 | 1800*1800 | 1800 | 1800 | 230 | ||
1600*2000 | 1600*2000 | 1600 | 2000 | 220 | ||
1600*1800 | 1600*1800 | 1600 | 1800 | 220 | ||
1400*1800 | 1400*1800 | 1400 | 1800 | 200 | ||
1200*1800 | 1200*1800 | 1200 | 1800 | 200 |

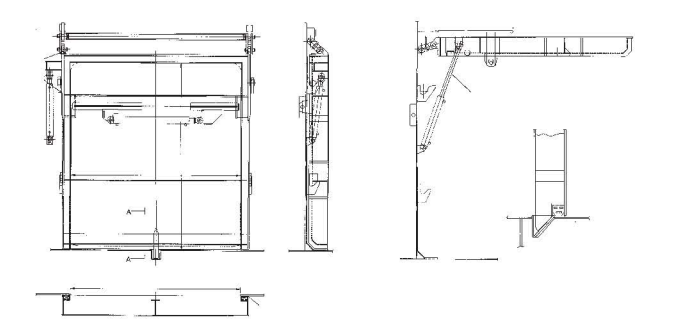

A Hydraulic Hinged Watertight Door is a specialized door designed for water-tight applications. It incorporates a marine hydraulic system for smooth and controlled operation. The door features robust sealing mechanisms to prevent water ingress, ensuring the safety of enclosed spaces. The hydraulic system, consisting of cylinders, pumps, and control valves, enables precise control of the door’s movement. It offers reliable and efficient operation, even in harsh marine environments.
Through-hole Size(b*h) | Blukhead Opening | B | H | T | Opening Direction | Power Supply |
650*1650 | 750*1750 | 650 | 1650 | 100 | Left-Opening(L) Right-Opening(R) | 440V-60Hz 3ø/DC24V 400V-50Hz 3ø/DC24V 380V-50Hz 3ø/DC24V |
650*1750 | 750*1850 | 650 | 1750 | 100 | ||
700*1700 | 800*1800 | 700 | 1700 | 110 | ||
700*1800 | 800*190 | 700 | 1800 | 110 | ||
800*1700 | 900*1800 | 800 | 1700 | 120 | ||
800*1800 | 900*1900 | 800 | 1800 | 125 | ||
850*1850 | 950*1500 | 850 | 1850 | 125 |
Hydraulic Translational Ship Watertight Doors
Through-hole Size(b*h) | Bulkhead Opening | B | H | T | Opening Direction | Power Supply |
2000*2200 | 2200*2400 | 2000 | 2200 | 125 | Left-Opening(L) Right-Opening(R) | 440V-60Hz 3ø/DC24V 400V-50Hz 3ø/DC24V 380V-50Hz 3ø/DC24V |
2000*2000 | 2200*2200 | 2000 | 2000 | 120 | ||
1800*2000 | 2000*2200 | 1800 | 2000 | 120 | ||
1800*1800 | 2000*2000 | 1800 | 1800 | 110 | ||
1600*2000 | 1800*2200 | 1600 | 2000 | 110 | ||
1600*1800 | 1800*2000 | 1600 | 1800 | 100 | ||
1400*1800 | 1600*2000 | 1400 | 1800 | 100 | ||
1200*1800 | 1400*2000 | 1200 | 1800 | 90 | ||
1200*1600 | 1400*1800 | 1200 | 1600 | 90 | ||
1000*1600 | 1200*1800 | 1000 | 1600 | 80 | ||
900*1800 | 1100*1800 | 900 | 1600 | 80 | ||
900*1400 | 1100*1600 | 900 | 1400 | 70 | ||
800*1800 | 1000*2000 | 800 | 1800 | 70 | ||
800*1600 | 1000*1800 | 800 | 1600 | 60 | ||
750*1850 | 950*2050 | 750 | 1850 | 60 |

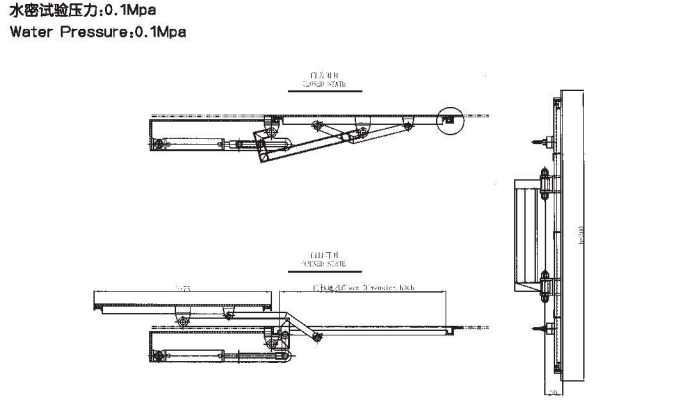

A hydraulic translational ship watertight door differs from other doors in its unique linear movement, exceptional water-tight sealing capabilities, and incorporation of a hydraulic system for precise control. This ship watertight doors are specifically designed for applications where watertight integrity is crucial, such as marine vessels or underwater environments. The door’s translational motion allows for efficient use of space and easier access. With customization options available, including size and additional features, the hydraulic translational watertight door on ships can be tailored to specific requirements. The ship watertight doors are specialized design and functionality make it an ideal choice for environments that demand reliable water-tight sealing and efficient operation.
